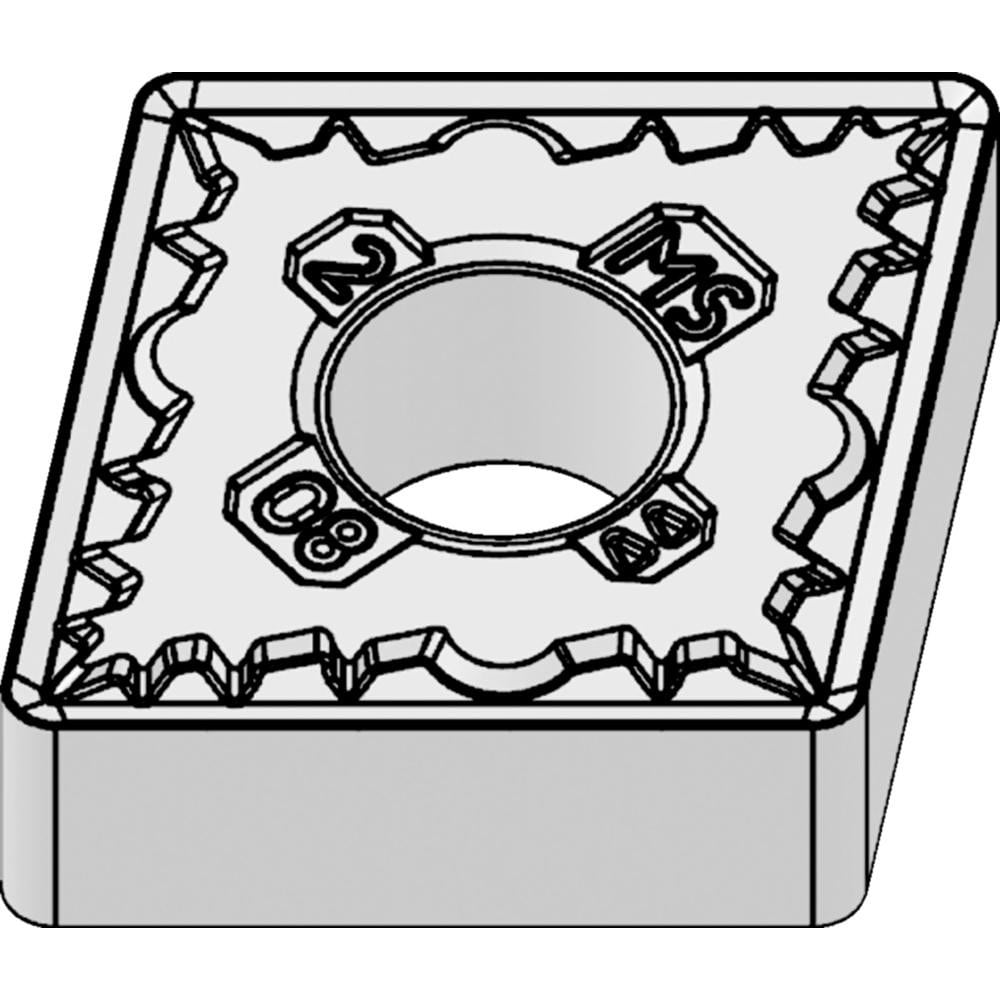

Brand: Widia / Part #: 5908755

Brand: Widia / Part #: 5908755


Item #: 95960027
Brand: Widia
Model #: 5908755

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 542
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WS25PT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2500
Maximum Depth of Cut (Decimal Inch) 0.3173
Inscribed Circle (Decimal Inch) 0.6250
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6346
Number Of Cutting Edges 8
Secondary Workpiece Material Stainless Steel; Super-alloys & Titanium
Secondary Workpiece Material Code S; M
Ansi Code CNMG542MS
Iso Code CNMG160608MS
Manufacturers Catalog Number CNMG542MS
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker MS
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.6250
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 22.30
