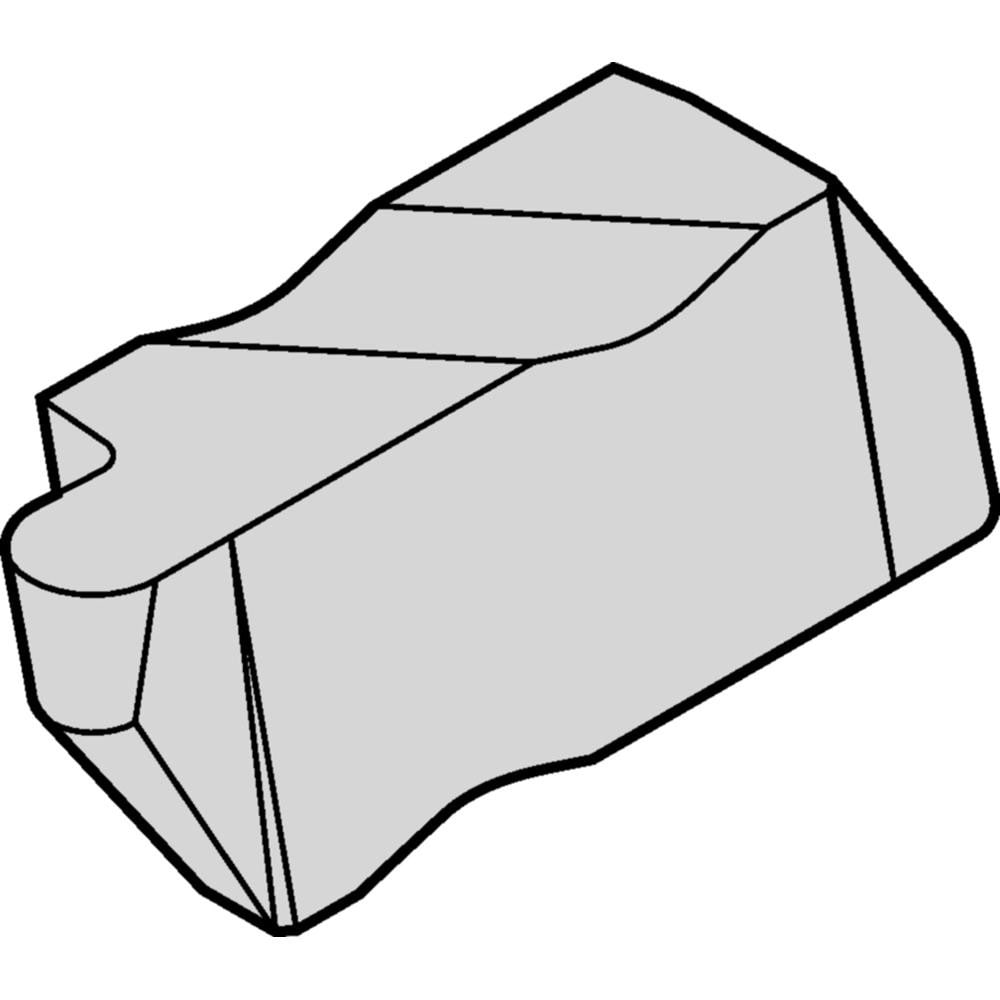

Brand: Widia / Part #: 3607483

Brand: Widia / Part #: 3607483


Item #: 94471240
Brand: Widia
Model #: 3607483

Product Specifications

Insert Style NR
Insert Size Code 2
Insert Size 2
Insert Material Carbide
Manufacturer Grade TN6025
Cutting Width (Decimal Inch) 0.1378
Cutting Width (mm) 3.500
Maximum Depth of Cut (Decimal Inch) 0.1098
Maximum Depth of Cut (Inch) 7/64
Maximum Depth of Cut (mm) 2.79
Insert Holding Method Clamp
Cutting Height (Inch) 7/64
Insert Hand Right Hand
Corner Radius (mm) 1.75
Corner Radius (Decimal Inch) 0.0689
Lead Angle 11.000
Rake Neutral
Multi-use Tool Yes
Cutting Tool Application Grooving; Turning
Series NR
Coating Process PVD
Rake Angle 0.000
Overall Length (Decimal Inch) 1.1096
Overall Length (mm) 28.1800
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; N
Secondary Workpiece Material Non-Ferrous Metal
Ansi Code NR2M175R
Iso Code NR2M175R
Relief Angle 11
Maximum Corner Radius (Decimal Inch) 0.0689
Manufacturers Catalog Number NR2M175R
Insert Thickness (Decimal Inch) 0.2190
Minimum Groove Width (mm) 3.50
Thickness (Inch) 7/32
Type Top Notch Grooving Insert
Maximum Groove Width (mm) 3.50
Minimum Insert Width (mm) 3.84
Chip Breaker None
Insert Seat Size 2
Style Top Notch Grooving Insert
Insert Height (Decimal Inch) 0.2190
Full Radius Yes
Gage Diameter (Decimal Inch) 0.1875
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 3/16
Overall Width 3.8400
Overall Width (Decimal Inch - 4 Decimals) 0.1510
Coating/Finish TiAlN
Number Of Cutting Edges 2
Single Or Double End Single
Groove Width (mm) 3.50
For Use With Grooving; Turning
Insert Thickness 5.56
Hole Diameter (Mm) ( - 0 Decimals) 0.0000
$ 21.64
