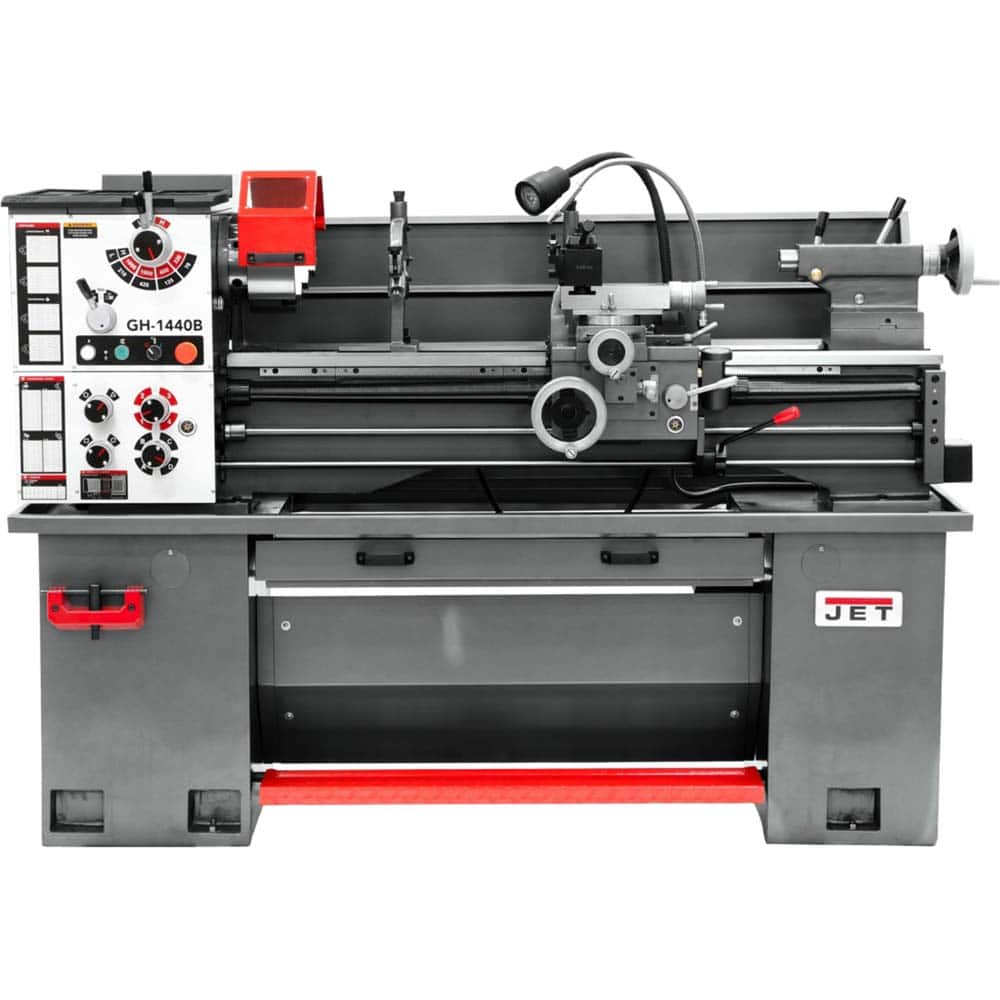

Jet - Bench, Engine & Toolroom Lathes Machine Type: Bench Lathe Spindle Speed Control: Geared Head - Exact Tooling

Jet - Bench, Engine & Toolroom Lathes Machine Type: Bench Lathe Spindle Speed Control: Geared Head


Item #: 14767057
Brand: Jet
Model #: 323444

Features and Benefits

Bench lathes are used for light- to medium-duty work and are mounted onto a workbench or stand. They are capable of machining larger work than hobby lathes with swings of 9" to 13".
Geared head lathes generally feature drive belt(s) from the motor to the headstock. Speed changes are made by shifting gear lever combinations in the headstock.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.

Product Specifications

Bench, Engine & Toolroom Lathes; Machine Type: Bench Lathe ; Spindle Speed Control: Geared Head ; Phase: 1 ; Voltage: 230 ; Horsepower (HP): 2 ; Distance Between Centers (Inch): 40
Machine Type Bench Lathe
Spindle Speed Control Geared Head
Phase 1
Voltage 230
Horsepower (HP) 2
Distance Between Centers (Inch) 40
Spindle Bore Diameter (mm) 2.00
Spindle Taper Size (No Sleeve) 4MT
Spindle Taper Size 4MT
Spindle Taper Size (Sleeve) 6MT
Swing Over Gap (Decimal Inch) 20.0000
Swing Over Cross Slide (Inch) 8
Bed Width (Inch) 7.32
Number of Spindle Speeds 8
Minimum Spindle Speed (RPM) 70.00
Maximum Spindle Speed (RPM) 1900.00
Number of Inch Threads 34
Maximum Threads Per Inch 7
Min. Longitudinal Feed Per Rev. (Decimal Inch) 0.0020
Max. Longitudinal Feed Per Rev. (Decimal Inch) 0.0548
Minimum Threads Per Inch 4
Tailstock Travel (Decimal Inch) 4.0000
Overall Length (Inch) 76-13/32
Overall Height (Inch) 59-13/16
Overall Depth (Inch) 2-29/32
Includes 1 Taper Attachment
Includes Taper Attachment
