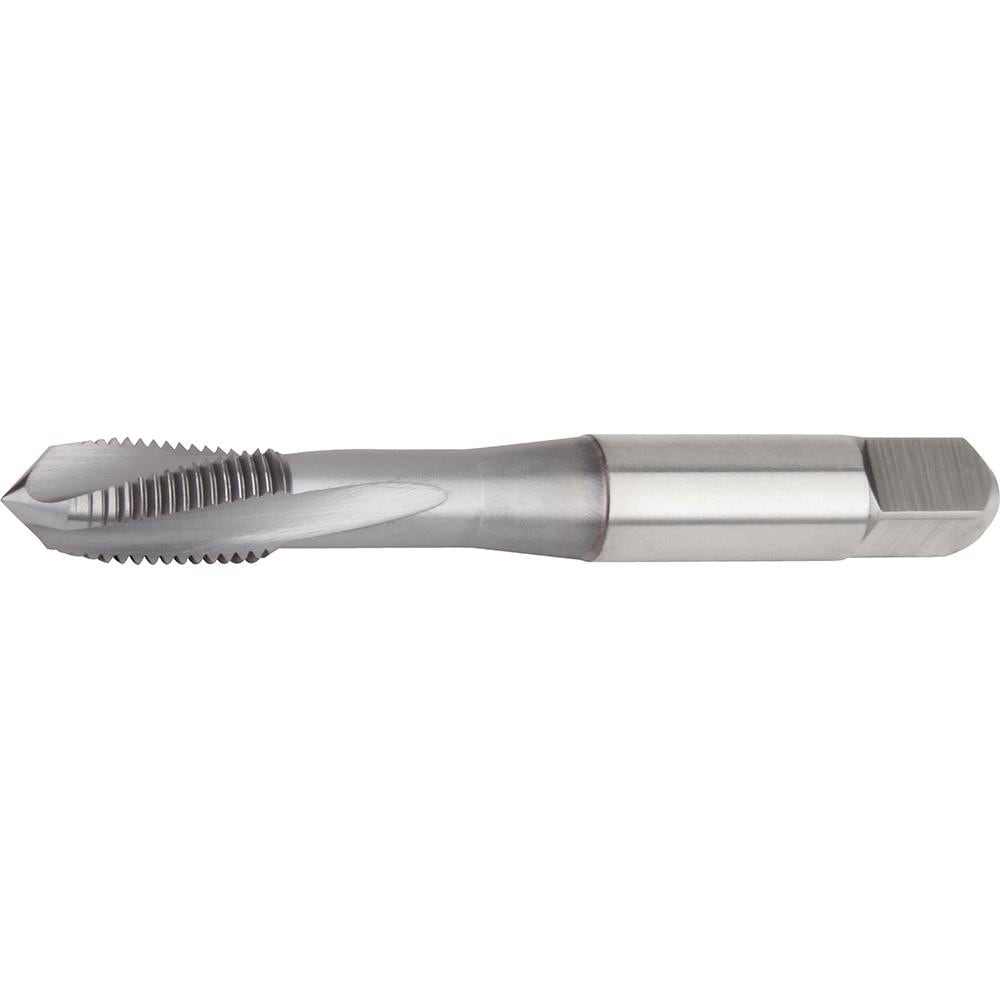

Brand: Widia / Part #: 5705656
Item #: 97537765
Brand: Widia
Model #: 5705656
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Chamfer | Plug |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 17 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | Oxide; Nitride |
| Thread Depth (mm) | 32.30 |
| Coolant Through | No |
| Thread Length (mm) | 13.40 |
| Overall Length (mm) | 74.6000 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Material Grade | WS39MG |
| Shank Diameter (mm) | 9.6800 |
| Square Length (mm) | 11.10 |
| Square Size (mm) | 7.21 |
| Material Application | High-Temperature Alloy |
| Series | GT90 |
