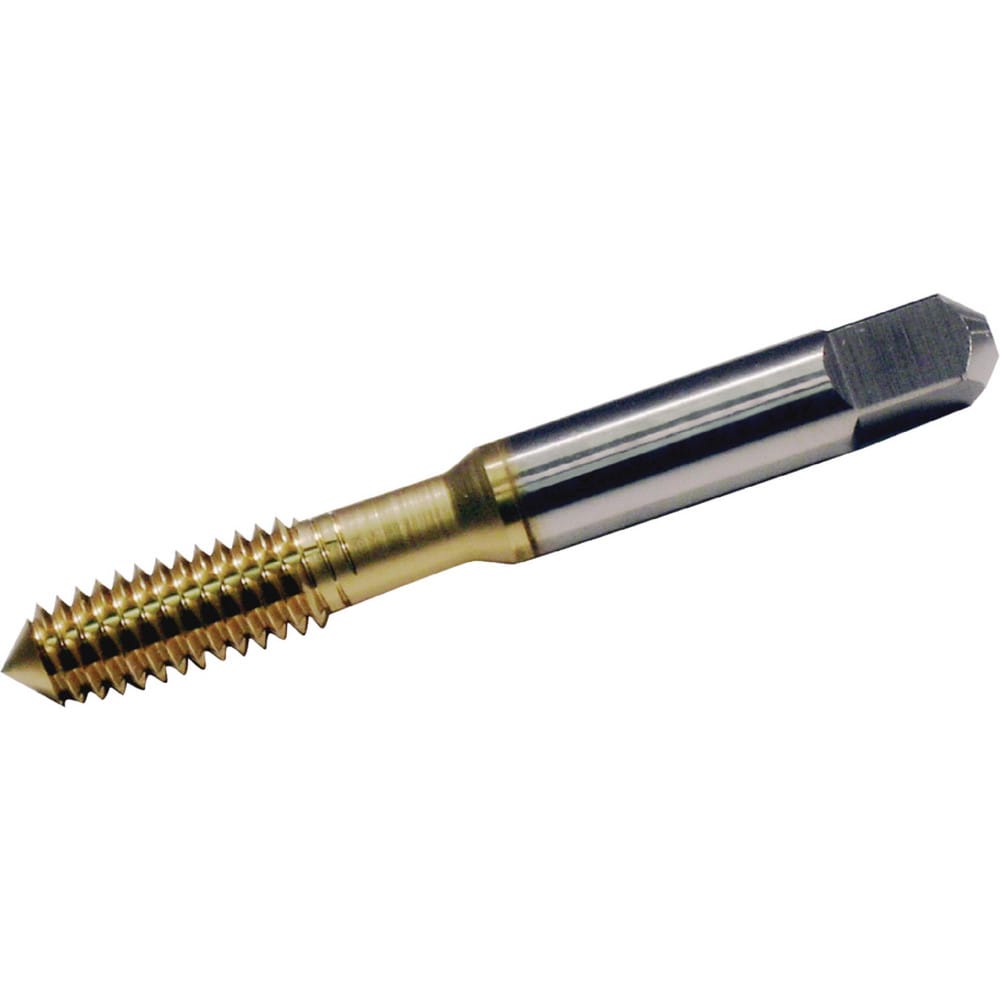

Brand: Widia / Part #: 2747092
Item #: 98854029
Brand: Widia
Model #: 2747092
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Overall Length (mm) | 74.6800 |
| Chamfer | Plug |
| Coating/Finish | TiCN |
| Thread Limit | D10 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 19.05 |
| Thread Depth (mm) | 31.75 |
| Thread Depth | 31.7500 |
| Shank Diameter (mm) | 9.6800 |
| Neck Length | 12.70 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5910 |
| Tap Type | Through |
| Tapping Depth (mm) | 31.75 |
| Shank Length (mm) | 42.930 |
| Threads per Inch | 17 |
| Class Of Fit | 6H |
| Coolant Through | No |
