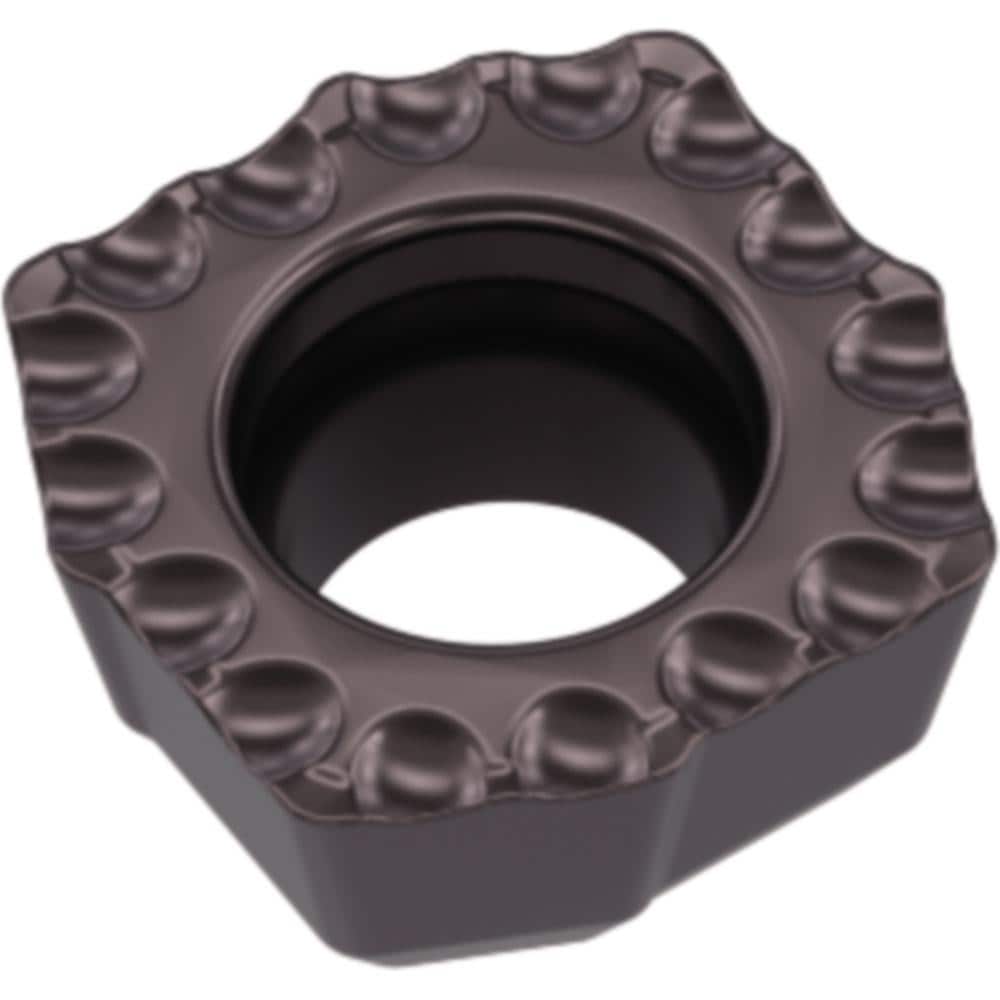

Brand: Widia / Part #: 6429451
Item #: 08008583
Brand: Widia
Model #: 6429451
Product Specifications
| Insert Style | TCF |
| Insert Size Code | 100408 |
| Insert Material | Carbide |
| Manufacturer Grade | WU25CH |
| Inscribed Circle (Decimal Inch) | 0.3920 |
| Cutting Direction | Neutral |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | V38 |
| Series | TCF |
| Coating Process | CVD |
| Shape | Irregular |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | TCF100408EPV38 |
| Iso Code | TCF100408EPV38 |
| Drill Style | TCF |
| Insert Size | 10 |
| Coating Classification | CVD |
| Width (Decimal Inch - 4 Decimals) | 0.4173 |
| Length (Decimal Inch - 4 Decimals) | 0.4173 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1417 |
| Coating/Finish | TiCN; Al2O3 |
