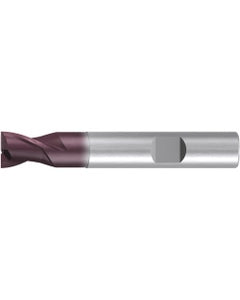

Square End Mill; 20 mm Dia. × 20 mm LOC × 20 mm Shank Dia. × 92 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series 2511A
Item #: ER4519587
Brand: EMUGE-FRANKEN
Model #: 2511A.020
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Application | | Finishing | |
| Depth of Cut Maximum (APMX) | 20 mm |
| Tool Type | Stub Length |
| Overall Length (OAL) | 92 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.7874″ |
| Coating | AlTiN |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | 2511A |
| Shank Type | HB |
