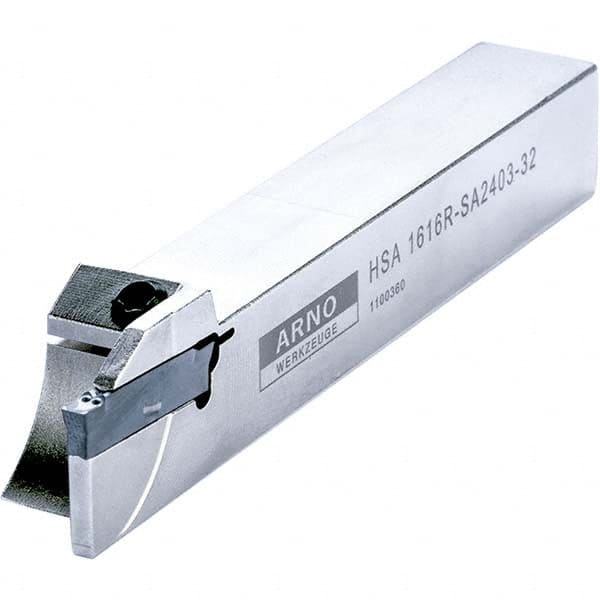

Arno - 0.394" Max Depth, 0.059 to 0.787" Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 11428091
Brand: Arno
Model #: 96482
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 4.3310 |
| Series | SA Parting / Grooving |
| Toolholder Style | HSA Monoblock |
| Insert Compatibility | SA 24-15 |
| Shank Height (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3940 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | HSA 1010L-SA24015-20 |
