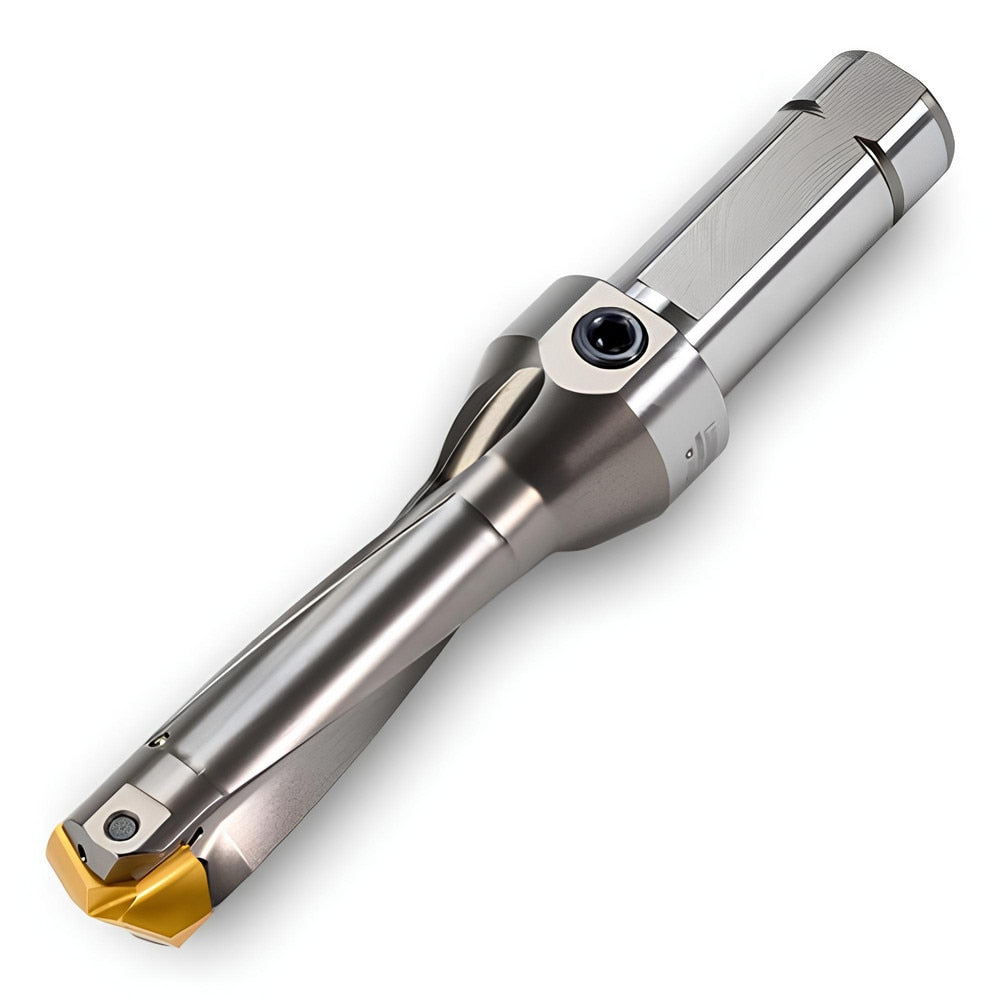

Brand: Ingersoll Cutting Tools / Part #: 6146014

Brand: Ingersoll Cutting Tools / Part #: 6146014


Item #: 48939474
Brand: Ingersoll Cutting Tools
Model #: 6146014

Product Specifications

Minimum Drill Diameter (Decimal Inch) 1.2205
Maximum Drill Diameter (Decimal Inch) 1.2559
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 3.8600
Shank Type Flatted
Insert Style LPA
Shank Diameter (Decimal Inch) 1.2500
Insert Seat Size 31
Tool Material Steel
Compatible Insert Style LPA
Compatible Insert Size Code 31..
Overall Length (Decimal Inch) 8.9940
Series LD
Toolholder Style LD
Flute Length (Decimal Inch) 5.8340
Body Length (Decimal Inch) 5.8340
Shank Length (Decimal Inch) 3.1600
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Cutting Direction Right Hand
Coolant Through Yes
