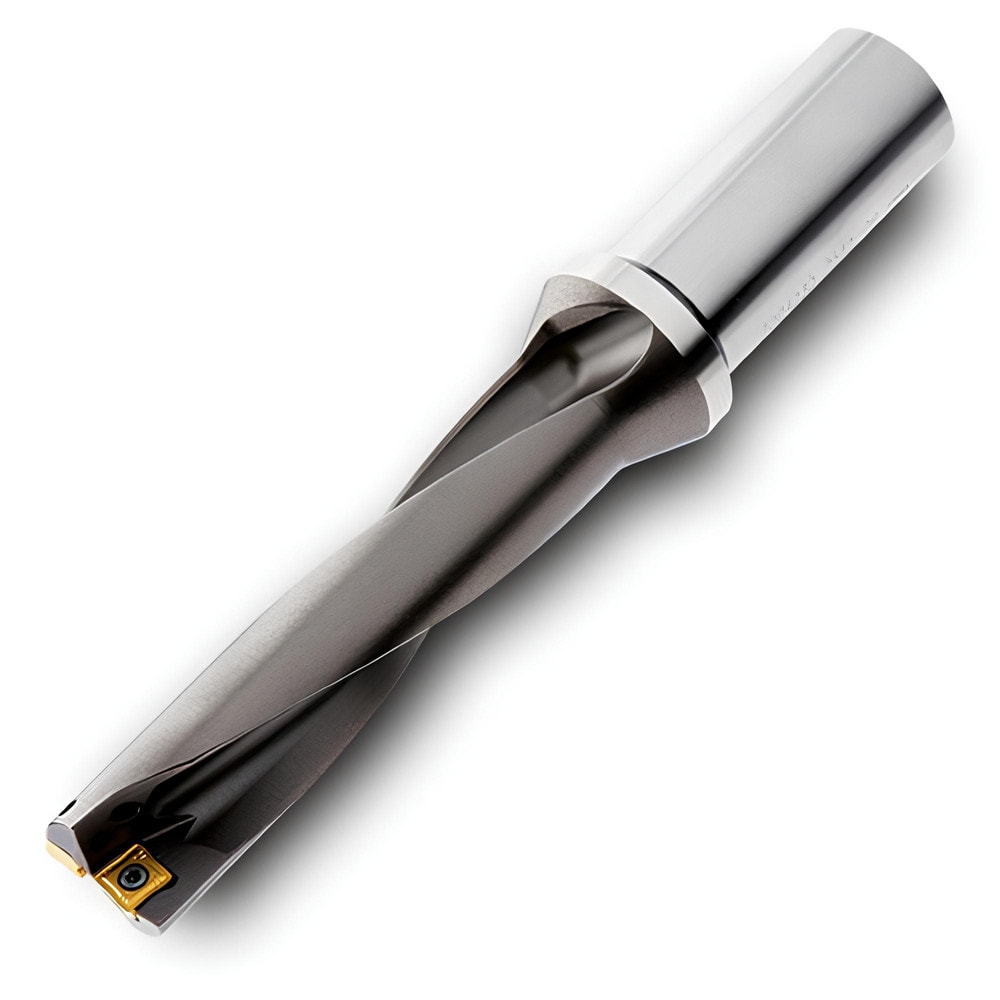

Brand: Ingersoll Cutting Tools / Part #: 6102699

Brand: Ingersoll Cutting Tools / Part #: 6102699


Item #: 96406673
Brand: Ingersoll Cutting Tools
Model #: 6102699

Product Specifications

Maximum Drill Depth 205.00 mm
Drill Depth by Diameter Ratio 5xD
Maximum Depth of Cut (mm) 205.00
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 233.00
Toolholder Style QR04
Nose Diameter (Mm) ( - 2 Decimals) 41.00
Nose Diameter (Decimal Inch - 4 Decimals) 1.6140
Overall Length (mm) 303.0000
Overall Length 303.00
Through Coolant Yes
Series QR
Flute Length (mm) 205.00
Shank Length (mm) 70.000
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (mm) 41.00
Maximum Cutting Diameter (Decimal Inch) 1.6140
Number Of Flutes 2
Coolant Through Yes
