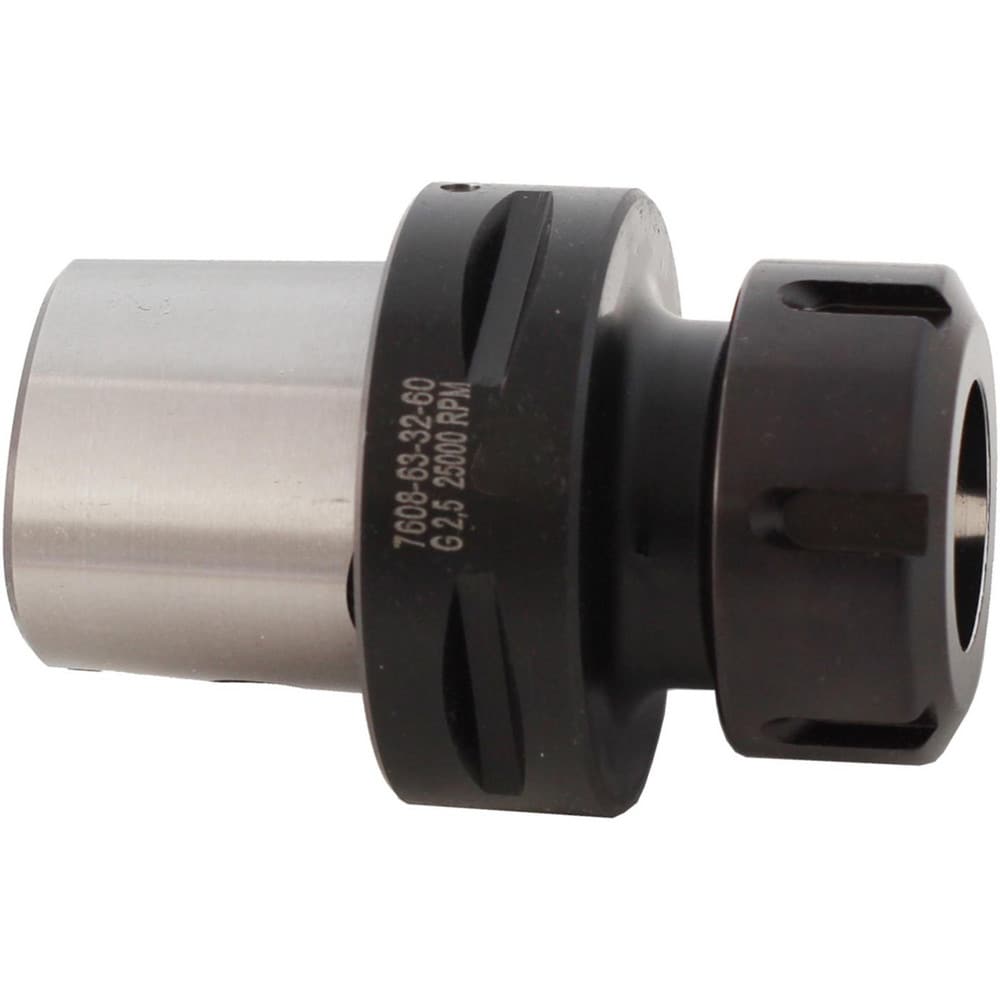

Brand: Bison / Part #: 7-146-432
Item #: 90893025
Brand: Bison
Model #: 7-146-432
Product Specifications
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Hollow Taper |
| Taper Size | C4 |
| Modular Connection Size | C4 |
| Projection (Decimal Inch) | 2.1300 |
| Projection (mm) | 54.000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 2.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.0800 |
| Maximum Collet Capacity (mm) | 20.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 78.0000 |
| Overall Length (Decimal Inch) | 3.0800 |
| Actuator Type | Wrench |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9700 |
| Nose Diameter (Mm) ( - 2 Decimals) | 50.00 |
| Maximum RPM | 25000.000 |
| TIR (mm) | 0.0100 |
| TIR (Decimal Inch) | 0.000400 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 50.00 |
| Collet Nut Diameter (Decimal Inch) | 1.9700 |
| Balanced To Rpm | 25000 |
| Thread Size (mm) | M40x1.5 |
