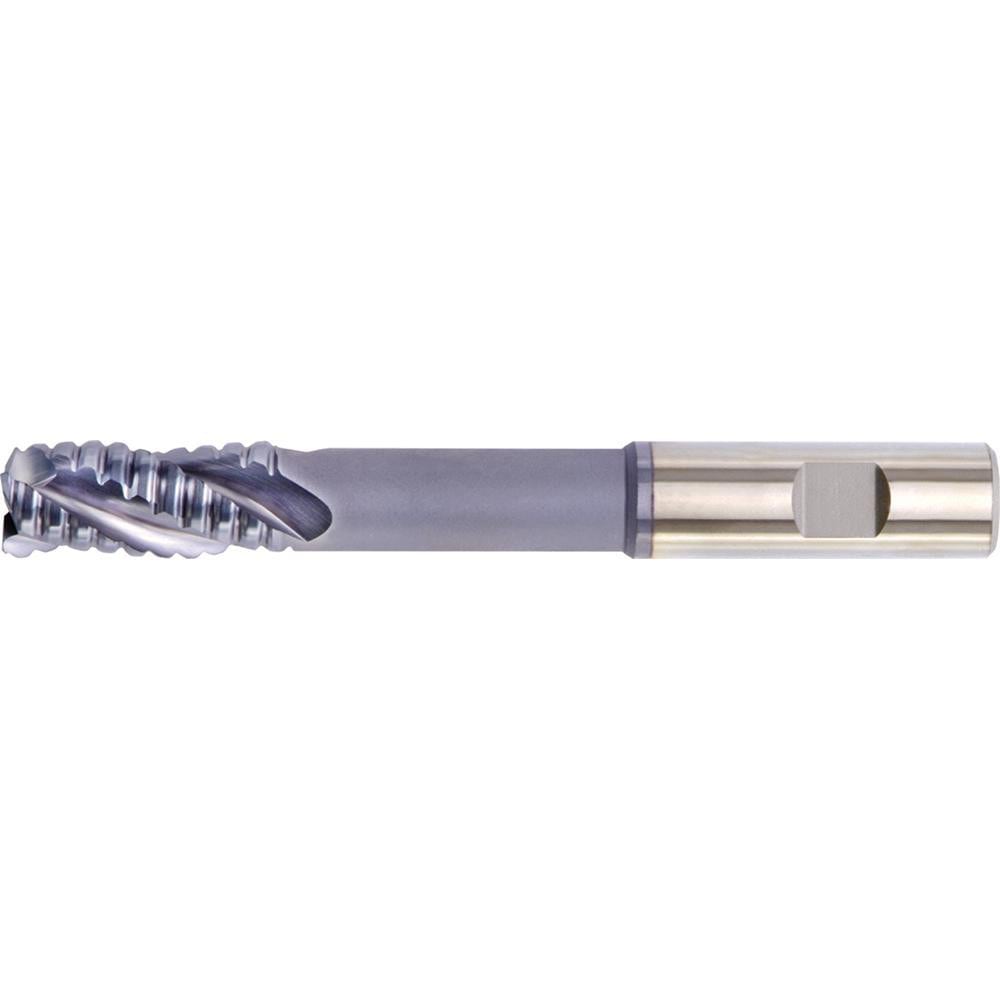

Brand: Widia / Part #: 1907409

Brand: Widia / Part #: 1907409


Item #: 33977281
Brand: Widia
Model #: 1907409

Product Specifications

Mill Diameter (Inch) 1
Chamfer Width (Decimal Inch) 0.0200
Coating/Finish TiCN
End Mill Material Cobalt
Number Of Flutes 3
Single Or Double End Single
Overall Length (Inch) 8-1/2
Overall Length (mm) 8.50
Length of Cut (Inch) 2
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 1.0000
Flute Direction Right Hand
Overall Length (Decimal Inch) 8.5000
Chipbreaker Yes
End Type Single
Chamfer Angle 45
Length Of Cut (Decimal Inch - 4 Decimals) 2.0000
Length Type Regular
Flute Type Helical
Extended Reach Yes
Shank Type Weldon Flat
Centercutting Yes
Material Removal Type Roughing
Shank Diameter (Decimal Inch) 1.0000
Shank Diameter (Inch) 1
Neck Diameter (Decimal Inch) 0.9400
Reach Length (Decimal Inch) 6.0000
Reach Length (Inch) 6
Minimum Helix Angle 30.00
Maximum Helix Angle 30.00
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Series 6ANR
$ 363.52
