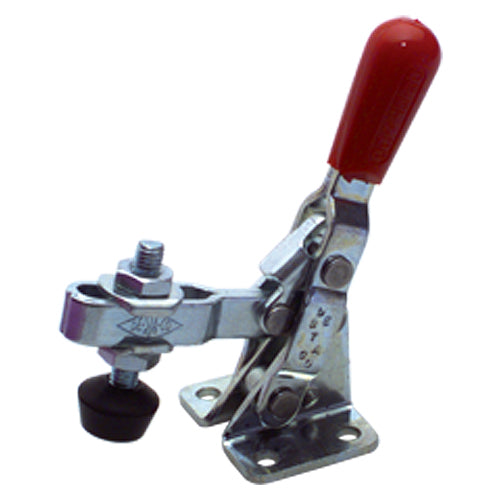

Toggle Clamp - Model 201-UB Horizontal Hold Down U-Shape Bar Style; 100 lbs Holding Capacity
Item #: MA50201UB
Brand: De-Sta-Co
Model #: 201-UB
| Product Specifications | |
|---|---|
| Style | Vertical Handle Hold Down |
| Mounting Diameter | 0.17″ |
| Type | Toggle Clamp |
| Mounting Length | .63″ |
| Height Under Clamp Arm | .88″ |
| Overall Width | 0.53″ |
| Holding Capacity | 100 lbs |
| Spindle Size | M5 or 10/32″ |
| Overall Height | 3.53″ |
| Width Between Mounting Base | .16″ |
| Overall Length | 2.04″ |
| Base Length | 1″ |
| Spindle | .39″ |
| Maximum Clamping Thickness | .88″ |
| Thread Size | M5 |
| Toggle Lock Plus Lever | No |
| Model No | 201-UB |
| Accessory Fastener Included | 305208-M M5 × 0.7 |
| Includes | 100 |
| Bar Type | Straight |
| Bar Style | U-Shape |
| Clamp Arm Length | 1.04″ |
