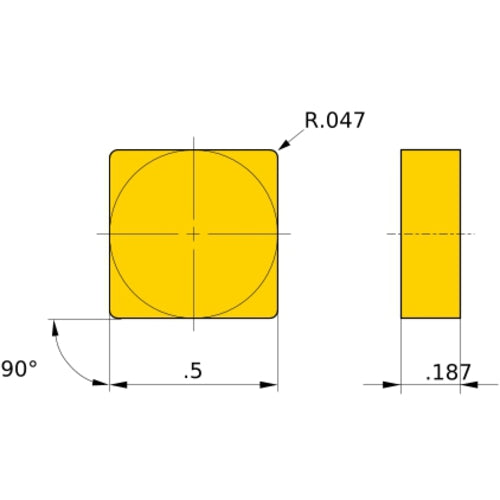

SPG 433 flat_top MBS140, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB01505914
Brand: Mitsubishi Materials USA
Model #: 505914
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Cutting Edge Material | CBN |
| Insert Style | SPG |
| Grade | MBS140 |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 433 |
| Chip Breaker Type | flat_top |
| Cutting Edge Length (L) | 0.508″ |
| Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm |
| Shape | Square |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | MBS140 |
| Insert Included Angle (EPSR) | 90 Degrees |
