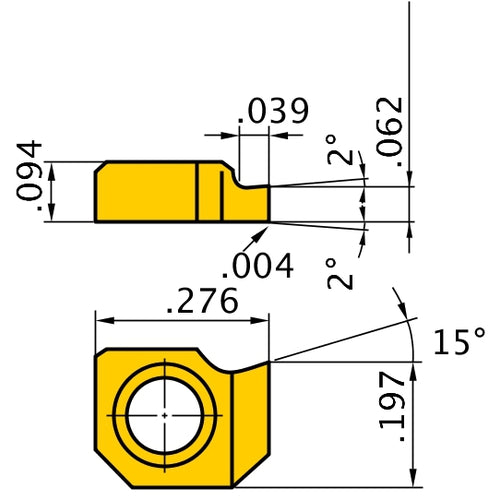

MLG10W062L HTI10 INSERT
Item #: MB02103062
Brand: Mitsubishi Materials USA
Model #: 103062
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.575 mm |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Cutting Depth Maximum (CDX) | 1 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 2.38 mm |
| Series/List # | HTi10 |
| Insert Rake Angle (GAN) | 15 Degrees |
| Measurement Type | Metric |
| Grade | HTi10 |
| Cutting Edge Length (L) | 7 mm |
| Cutting Edge Material | Carbide |
