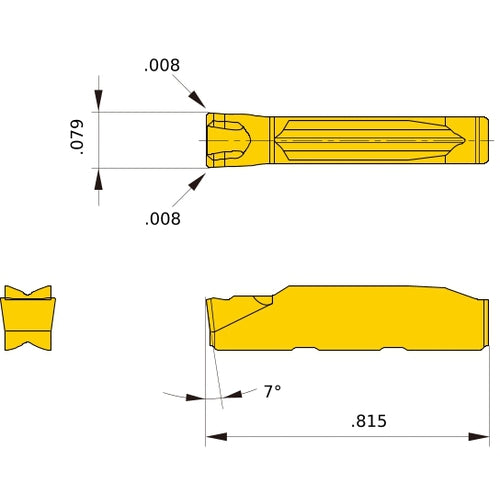

GY1M0200D020N-GM MY5015
Item #: MB0210568439
Brand: Mitsubishi Materials USA
Model #: 10568439
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Applicable Material | Cast Iron |
| Corner Radius (RE) | 0.2 mm |
| Chip Breaker Type | GM |
| Insert Length (INSL) | 20.7 mm |
| Series/List # | MY5015 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Grade | MY5015 |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Neutral |
