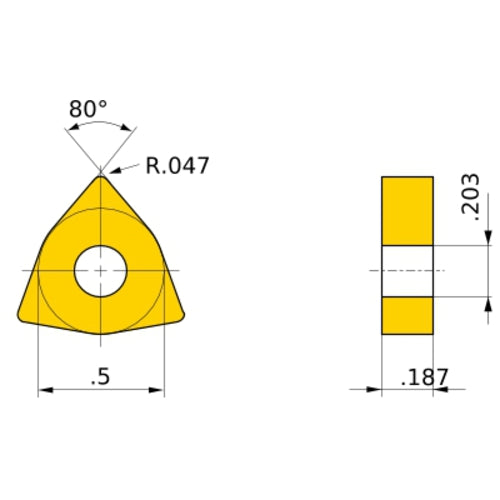

WNMG 433 FP NX2525, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210591376
Brand: Mitsubishi Materials USA
Model #: 10591376
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Cutting Edge Material | Cermet |
| Application | Finish Cutting |
| Grade | NX2525 |
| Insert Style | WNMG |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 433 |
| Chip Breaker Type | FP |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | NX2525 |
