TEEN32PETR1 UTI20T INSERT
Item #: MB02106825
Brand: Mitsubishi Materials USA
Model #: 106825

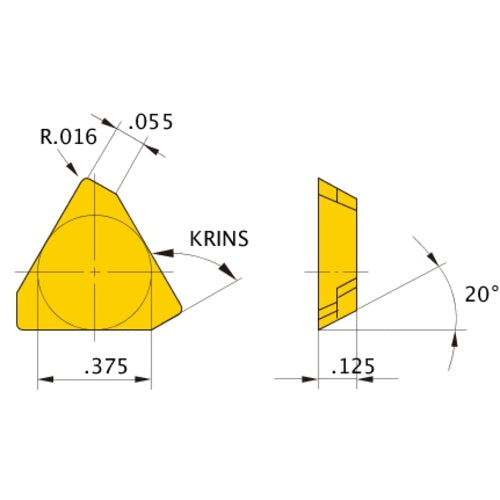

| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Insert Style | TEEN |
| Corner Radius (RE) | 0.4 mm |
| Clearance Angle Major (AN) | 20 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | UTi20T |
| Insert Thickness (S) | 3.175 mm |
| Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.4 mm |
| Tool Type | rotating_inserts |
| Grade | UTi20T |
| Measurement Type | Metric |
