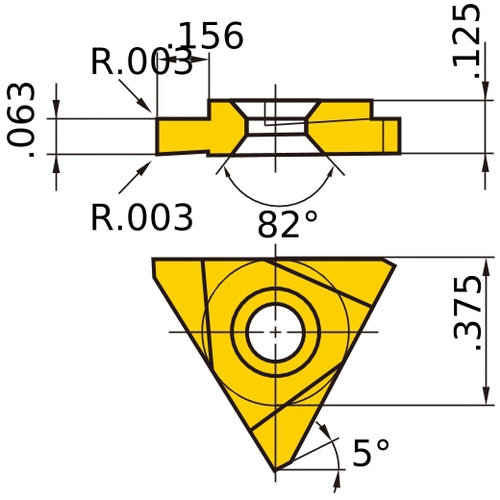

TNMC32NGL063 UP20M INSERT
Item #: MB02107349
Brand: Mitsubishi Materials USA
Model #: 107349
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.6 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.076 mm |
| Application | Grooving |
| Cutting Depth Maximum (CDX) | 3.962 mm |
| Applicable Material | Steel | Stainless Steel |
| Insert Thickness (S) | 3.175 mm |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | UP20M |
| Grade | UP20M |
| Measurement Type | Metric |
