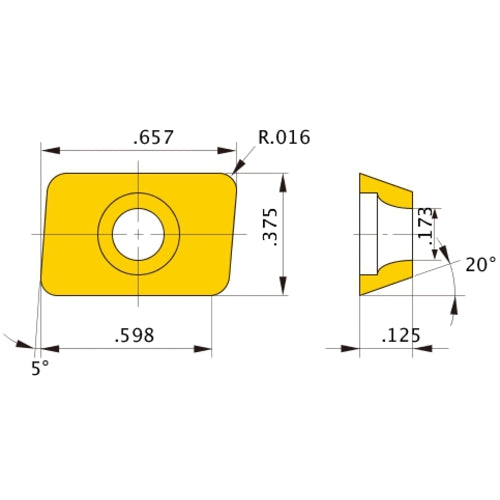

AEMW150304ER NX2525
Item #: MB02230498
Brand: Mitsubishi Materials USA
Model #: 230498
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 16.696 mm |
| Series/List # | NX2525 |
| Corner Radius (RE) | 0.4 mm |
| Hole Diameter | 4.4 mm |
| Insert Width (W1) | 9.525 mm |
| Cutting Edge Material | Cermet |
| Insert Thickness (S) | 3.18 mm |
| Cutting Edge Effective Length (LE) | 15.2 mm |
| Grade | NX2525 |
| Measurement Type | Metric |
