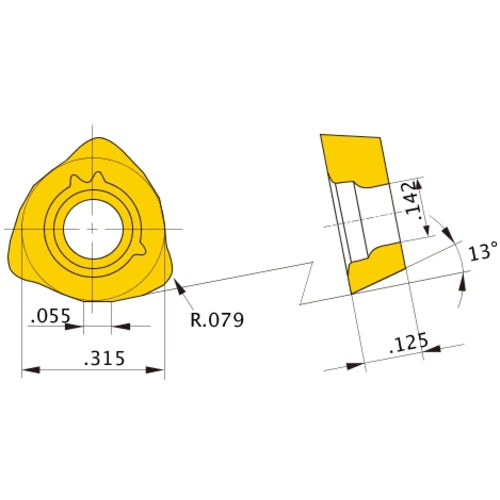

JOMW080320ZZSR-FT FH7020 INSERT
Item #: MB02240987
Brand: Mitsubishi Materials USA
Model #: 240987
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Clearance Angle Major (AN) | 13 Degrees |
| Corner Radius (RE) | 2 mm |
| Series/List # | FH7020 |
| Inscribed Circle Diameter (IC) | 8 mm |
| Hole Diameter | 3.6 mm |
| Insert Thickness (S) | 3.18 mm |
| Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.4 mm |
| Tool Type | rotating_inserts |
| Grade | FH7020 |
| Measurement Type | Metric |
| Insert Style | JOMW |
