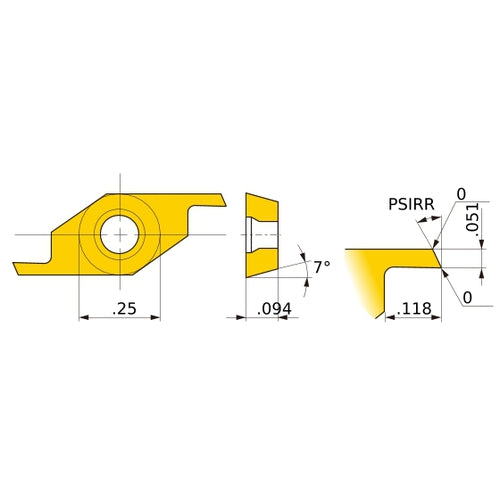

CSVTC1360L VP15KZ INSERT
Item #: MB02266896
Brand: Mitsubishi Materials USA
Model #: 266896
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.3 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Corner Radius (RE) | 0 mm |
| Cutting Edge Angle Major Left Hand (PSIRL) | 25 Degrees |
| Insert Thickness (S) | 2.38 mm |
| Insert Size | 6.35 mm |
| Cutting Depth Maximum (CDX) | 3 mm |
| Series/List # | VP15KZ |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Grade | VP15KZ |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Left Hand |
| Depth of Cut Maximum (APMX) | 2.5 mm |
| Application | For Small Tools Series |
