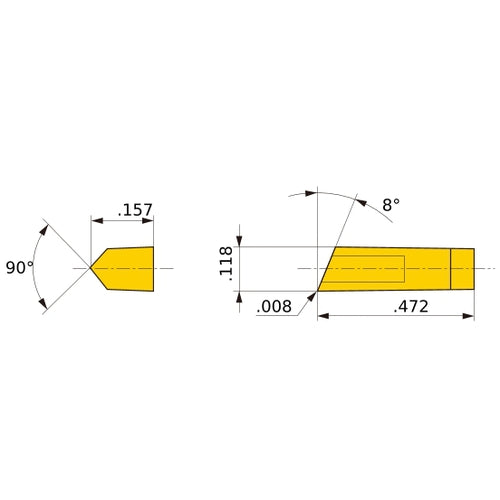

CTET3035002L-B VP15TF INSERT
Item #: MB02267813
Brand: Mitsubishi Materials USA
Model #: 267813
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 3 mm |
| Application | For Small Tools Series |
| Corner Radius (RE) | 0.2 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Insert Thickness (S) | 4 mm |
| Cutting Edge Angle Major Left Hand (PSIRL) | 8 Degrees |
| Overall Length (OAL) | 12 mm |
| Chip Breaker Type | B |
| Insert Length (INSL) | 12 mm |
| Series/List # | VP15TF |
| Cutting Edge Material | Carbide |
| Work Piece Parting Diameter Maximum (CUTDIA) | 23 mm |
| Grade | VP15TF |
| Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
