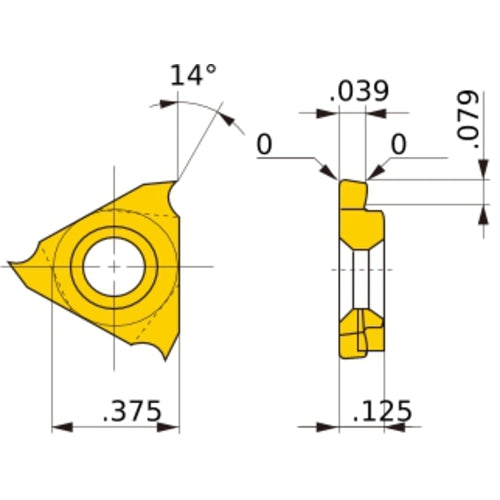

GTAT1002000R-VT VP15KZ INSERT
Item #: MB02269341
Brand: Mitsubishi Materials USA
Model #: 269341
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Cutting Depth Maximum (CDX) | 2 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | VT |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | VP15KZ |
| Insert Rake Angle (GAN) | 14 Degrees |
| Measurement Type | Metric |
| Grade | VP15KZ |
