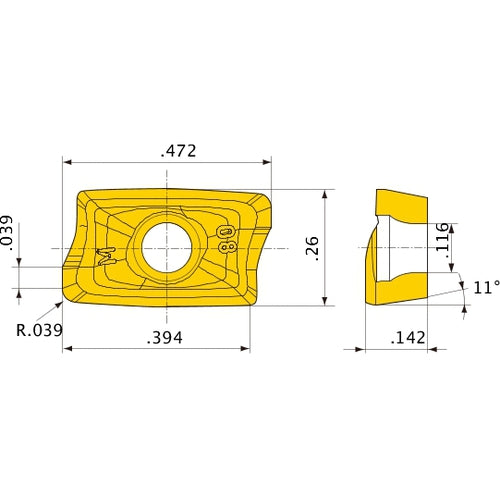

AOMT123610PEER-M VP15TF
Item #: MB02291514
Brand: Mitsubishi Materials USA
Model #: 291514
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 12 mm |
| Series/List # | VP15TF |
| Corner Radius (RE) | 1 mm |
| Hole Diameter | 2.95 mm |
| Insert Width (W1) | 6.6 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.6 mm |
| Cutting Edge Effective Length (LE) | 10 mm |
| Grade | VP15TF |
| Measurement Type | Metric |
