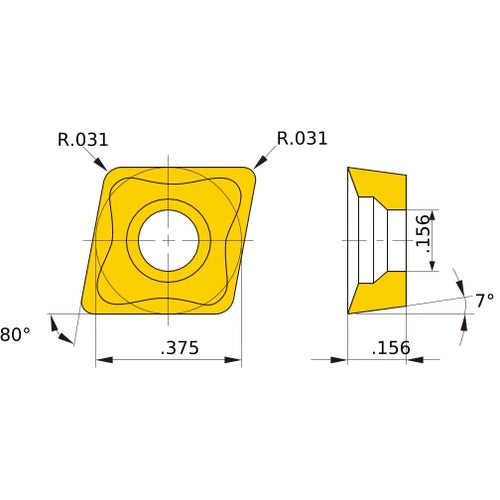

CCMX09T308ENB F7030
Item #: MB02306801
Brand: Mitsubishi Materials USA
Model #: 306801
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.8 mm |
| Series/List # | F7030 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Hole Diameter | 3.95 mm |
| Insert Thickness (S) | 3.97 mm |
| Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Metric |
| Grade | F7030 |
