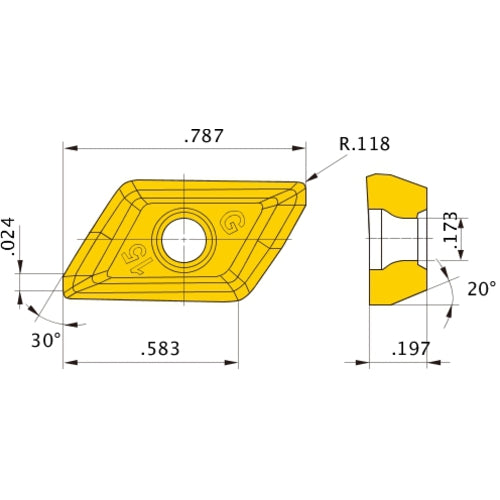

XDGT1550PDFR-G30 LC15TF
Item #: MB02327062
Brand: Mitsubishi Materials USA
Model #: 327062
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 20 mm |
| Series/List # | LC15TF |
| Insert Length (INSL) | 16 mm |
| Hole Diameter | 4.4 mm |
| Corner Radius (RE) | 3 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5 mm |
| Cutting Edge Effective Length (LE) | 14.8 mm |
| Grade | LC15TF |
| Measurement Type | Metric |
