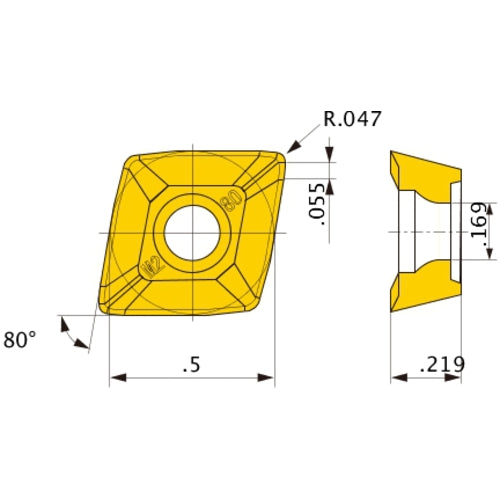

CPMT1205ZPEN-M3 VP15TF
Item #: MB02392155
Brand: Mitsubishi Materials USA
Model #: 392155
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1.2 mm |
| Series/List # | VP15TF |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Hole Diameter | 4.3 mm |
| Insert Thickness (S) | 5.56 mm |
| Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Metric |
| Grade | VP15TF |
