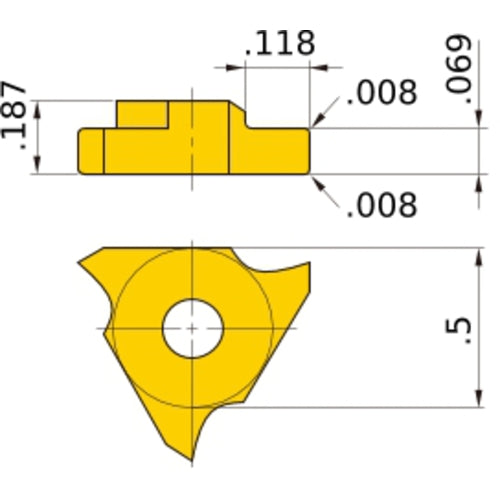

MGTL43175 NX2525 INSERT
Item #: MB02395188
Brand: Mitsubishi Materials USA
Model #: 395188
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.75 mm |
| Grade | NX2525 |
| Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Cermet |
| Cutting Depth Maximum (CDX) | 3 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Insert Thickness (S) | 4.76 mm |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | NX2525 |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Measurement Type | Metric |
