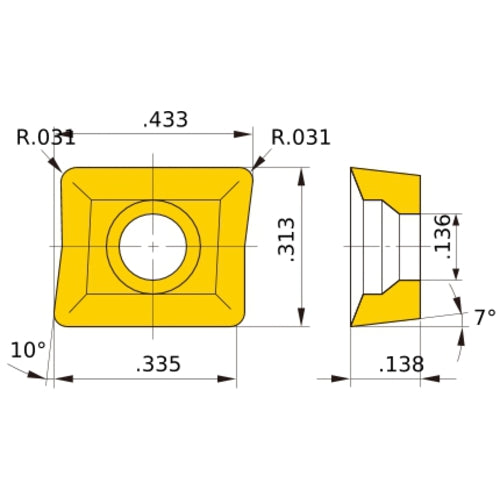

ZCMX083508ERA F7030
Item #: MB02404224
Brand: Mitsubishi Materials USA
Model #: 404224
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 11 mm |
| Series/List # | F7030 |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter | 3.45 mm |
| Insert Width (W1) | 7.94 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.5 mm |
| Cutting Edge Effective Length (LE) | 8.5 mm |
| Grade | F7030 |
| Measurement Type | Metric |
