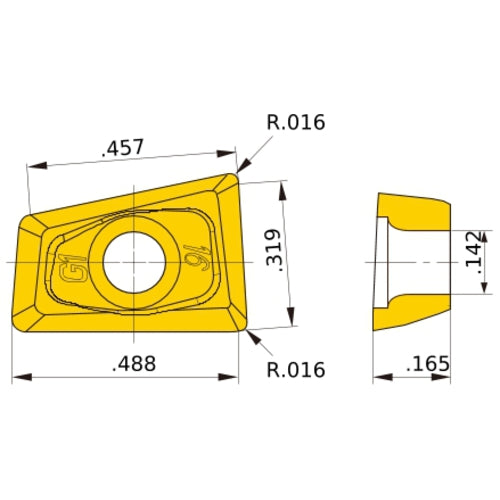

QOGT1342R-G1 HTI10
Item #: MB02408524
Brand: Mitsubishi Materials USA
Model #: 408524
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | HTi10 |
| Insert Length (INSL) | 12.4 mm |
| Series/List # | HTi10 |
| Corner Radius (RE) | 0.4 mm |
| Hole Diameter | 3.6 mm |
| Insert Width (W1) | 8.1 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 4.2 mm |
| Measurement Type | Metric |
