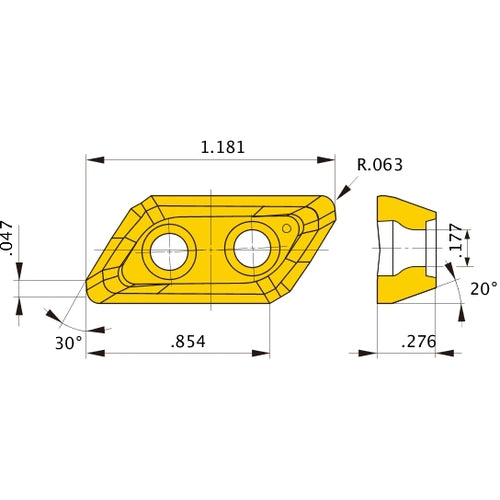

XDGX227016PDFR-GL LC15TF
Item #: MB02486506
Brand: Mitsubishi Materials USA
Model #: 486506
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Series/List # | LC15TF |
| Cutting Edge Length (L) | 30 mm |
| Hole Diameter | 4.5 mm |
| Corner Radius (RE) | 1.6 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 7 mm |
| Cutting Edge Effective Length (LE) | 21.7 mm |
| Grade | LC15TF |
| Measurement Type | Metric |
| Clearance Angle Major (AN) | 20 Degrees |
