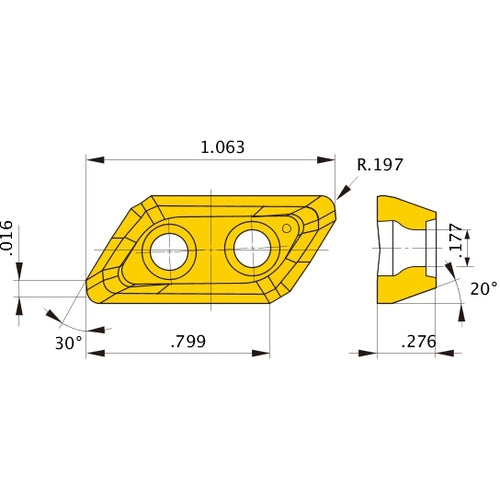

XDGX227050PDFR-GL LC15TF
Item #: MB02486557
Brand: Mitsubishi Materials USA
Model #: 486557
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Series/List # | LC15TF |
| Cutting Edge Length (L) | 27 mm |
| Hole Diameter | 4.5 mm |
| Corner Radius (RE) | 5 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 7 mm |
| Cutting Edge Effective Length (LE) | 20.3 mm |
| Grade | LC15TF |
| Measurement Type | Metric |
| Clearance Angle Major (AN) | 20 Degrees |
