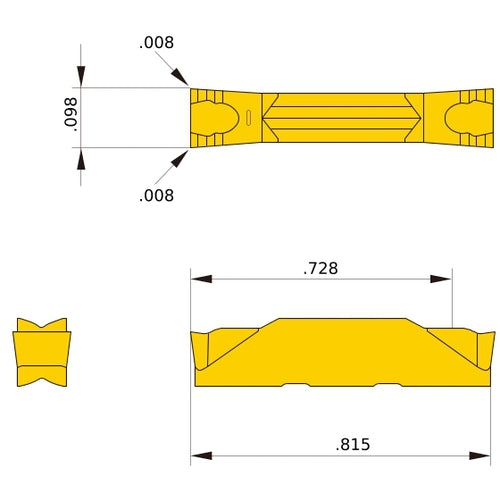

GY2M0250E020N-GS NX2525 GY INSERT
Item #: MB02547874
Brand: Mitsubishi Materials USA
Model #: 547874
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2.5 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm |
| Chip Breaker Type | GS |
| Cutting Depth Maximum (CDX) | 18.5 mm |
| Series/List # | NX2525 |
| Grade | NX2525 |
| Measurement Type | Metric |
| Cutting Edge Material | Cermet |
| Cutting Edge Length (L) | 20.7 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
