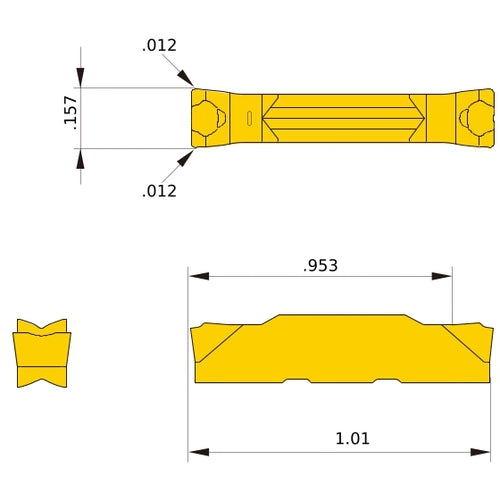

GY2M0400G030N-GU NX2525 GY INSERT
Item #: MB02578890
Brand: Mitsubishi Materials USA
Model #: 578890
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 4 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.3 mm |
| Chip Breaker Type | GU |
| Cutting Depth Maximum (CDX) | 24.2 mm |
| Series/List # | NX2525 |
| Grade | NX2525 |
| Measurement Type | Metric |
| Cutting Edge Material | Cermet |
| Cutting Edge Length (L) | 25.65 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
