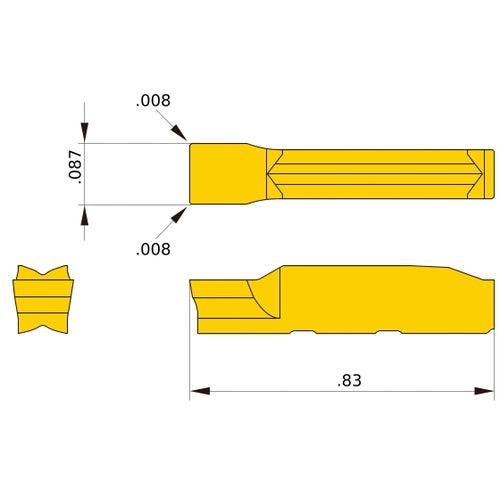

GY1B0220D020N NX2525 INS
Item #: MB02599084
Brand: Mitsubishi Materials USA
Model #: 599084
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2.2 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Insert Length (INSL) | 21.07 mm |
| Series/List # | NX2525 |
| Cutting Edge Material | Cermet |
| Measurement Type | Metric |
| Grade | NX2525 |
