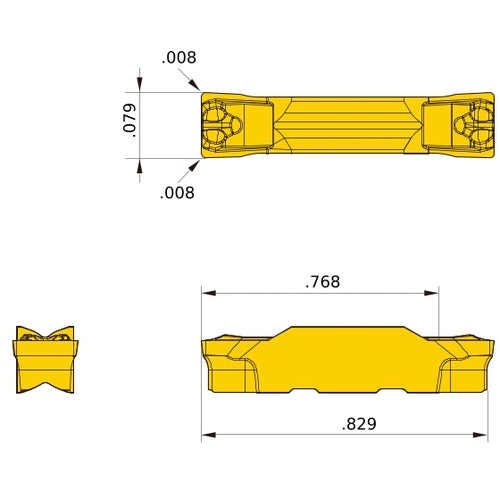

GY2G0200D020N-MF NX2525 GY INSERT
Item #: MB02686532
Brand: Mitsubishi Materials USA
Model #: 686532
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm |
| Chip Breaker Type | MF |
| Cutting Depth Maximum (CDX) | 19.5 mm |
| Series/List # | NX2525 |
| Grade | NX2525 |
| Measurement Type | Metric |
| Cutting Edge Material | Cermet |
| Cutting Edge Length (L) | 21.05 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
