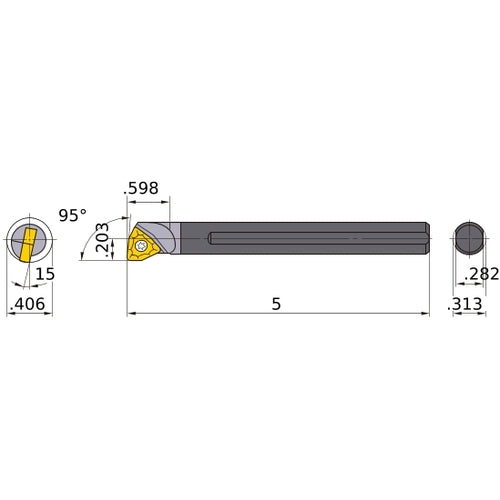

C-SWL0504L BORING BAR
Item #: MB03100498
Brand: Mitsubishi Materials USA
Model #: 100498
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.313″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 5″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.282″ |
| Rake Angle Radial (GAMF) | 15 Degrees |
| Functional Width (WF) | 0.203″ |
| Series/List # | C-SWL_C_INCH |
| Minimum Bore Diameter (DMIN) | 0.406″ |
| Measurement Type | Inch |
