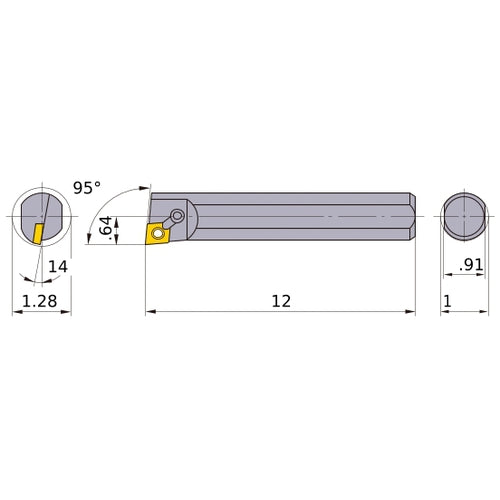

S-MCLNR-164 BORING BAR
Item #: MB03104352
Brand: Mitsubishi Materials USA
Model #: 104352
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 12″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.91″ |
| Rake Angle Radial (GAMF) | 14 Degrees |
| Functional Width (WF) | 0.64″ |
| Series/List # | S-MCLN_INCH |
| Minimum Bore Diameter (DMIN) | 1.28″ |
| Measurement Type | Inch |
