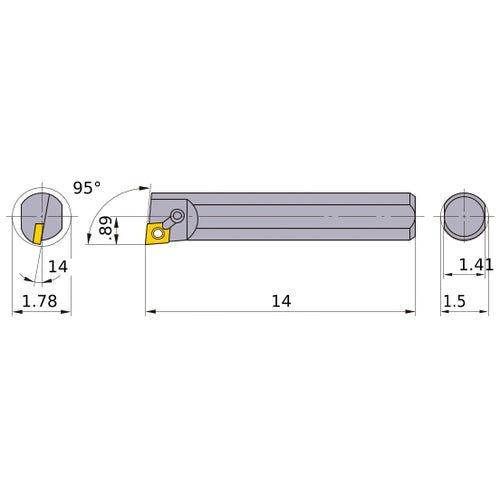

S-MCLNR-244 BORING BAR
Item #: MB03104354
Brand: Mitsubishi Materials USA
Model #: 104354
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 14″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 1.41″ |
| Rake Angle Radial (GAMF) | 14 Degrees |
| Functional Width (WF) | 0.89″ |
| Series/List # | S-MCLN_INCH |
| Minimum Bore Diameter (DMIN) | 1.78″ |
| Measurement Type | Inch |
