S-MDUNL-324 BORING BAR
Item #: MB03104363
Brand: Mitsubishi Materials USA
Model #: 104363

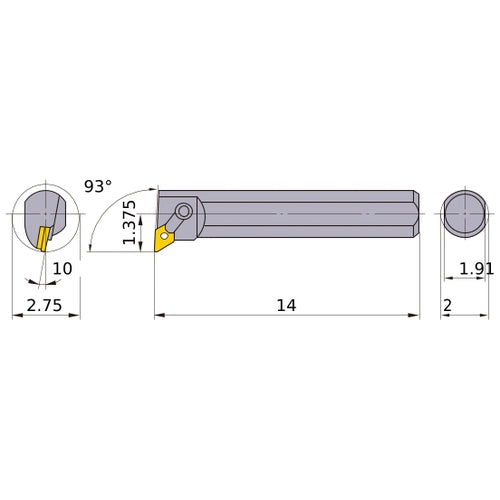

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 14″ |
| Frontal Edge Angle | 93 Degrees |
| Shank Height (H) | 1.91″ |
| Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Width (WF) | 1-3/8″ |
| Series/List # | S-MDUN_INCH |
| Minimum Bore Diameter (DMIN) | 2-3/4″ |
| Measurement Type | Inch |
