S-MTFNL-324 BORING BAR
Item #: MB03104394
Brand: Mitsubishi Materials USA
Model #: 104394

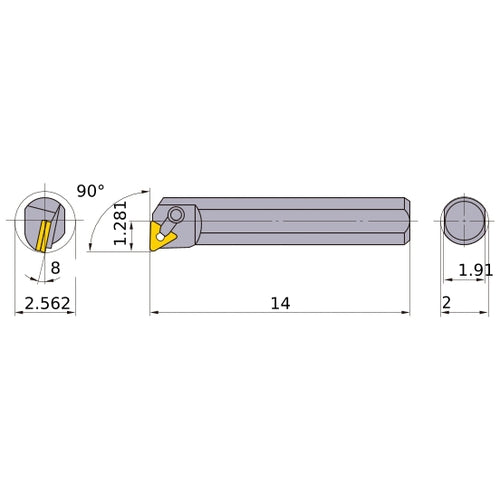

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 14″ |
| Frontal Edge Angle | 90 Degrees |
| Shank Height (H) | 1.91″ |
| Rake Angle Radial (GAMF) | 8 Degrees |
| Functional Width (WF) | 1.281″ |
| Series/List # | S-MTFN_INCH |
| Minimum Bore Diameter (DMIN) | 2.562″ |
| Measurement Type | Inch |
