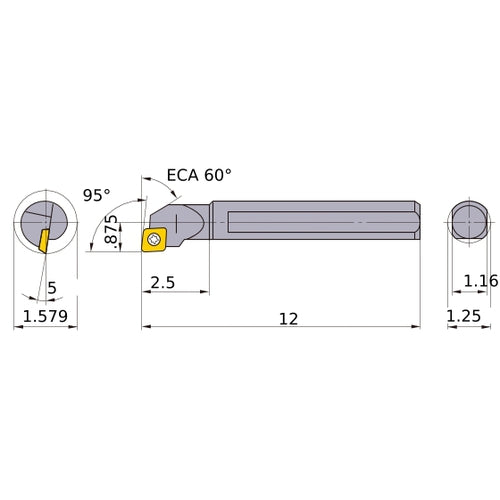

S-SCLCR-204 BORING BAR
Item #: MB03104431
Brand: Mitsubishi Materials USA
Model #: 104431
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 12″ |
| Frontal Edge Angle | 95 Degrees |
| Head Length (LH) | 2-1/2″ |
| Rake Angle Radial (GAMF) | 5 Degrees |
| Shank Height (H) | 1.16″ |
| Series/List # | S-SCLC_INCH |
| Functional Width (WF) | 7/8″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1.579″ |
