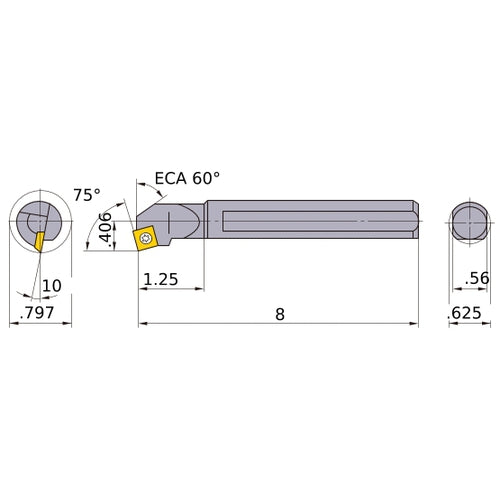

S-SSKCL-103 BORING BAR
Item #: MB03104456
Brand: Mitsubishi Materials USA
Model #: 104456
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 8″ |
| Frontal Edge Angle | 75 Degrees |
| Head Length (LH) | 1-1/4″ |
| Rake Angle Radial (GAMF) | 10 Degrees |
| Shank Height (H) | 0.56″ |
| Series/List # | S-SSKC_INCH |
| Functional Width (WF) | 0.406″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.797″ |
