MP2SBR0030
Item #: MB0310482209
Brand: Mitsubishi Materials USA
Model #: 10482209

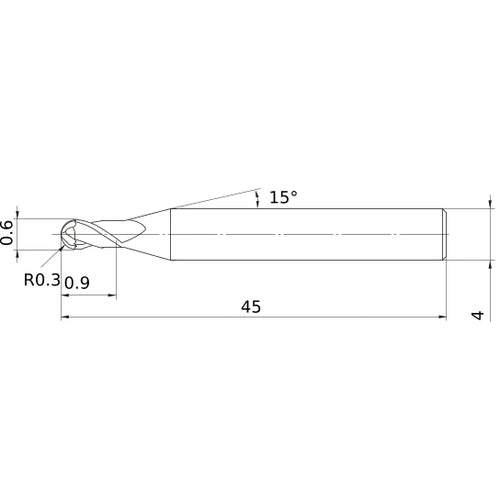

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.6 mm |
| Corner Radius (RE) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 0.9 mm |
| Length Group | Short |
| Overall Length (OAL) | 45 mm |
| End Shape | Ball Nose |
| Coating | MS+ |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | MP2SB |
| Flute Helix Angle (FHA) | 30 Degrees |
