MP2SDBR0400
Item #: MB0310513002
Brand: Mitsubishi Materials USA
Model #: 10513002

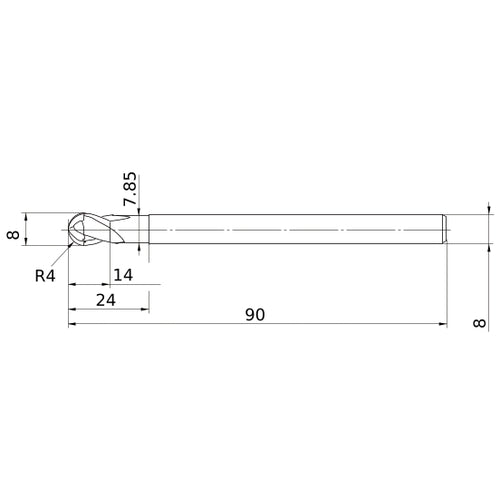

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Usable Length (LU) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Corner Radius (RE) | 4 mm |
| Depth of Cut Maximum (APMX) | 14 mm |
| Neck Diameter (DN) | 7.85 mm |
| Overall Length (OAL) | 90 mm |
| Length Group | Short |
| Coating | MS+ |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MP2SDB |
