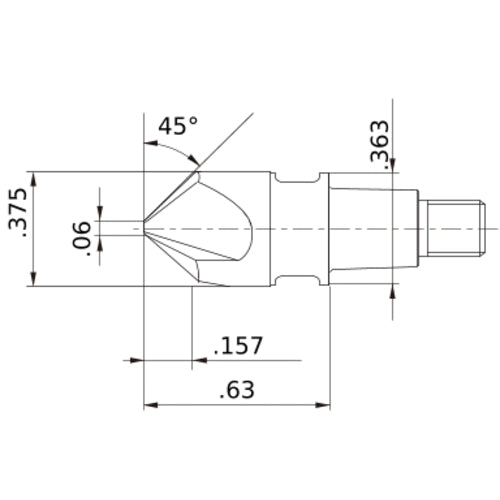

IMX10CH3L0375A45 EP7020 SOLID EM
Item #: MB0310528143
Brand: Mitsubishi Materials USA
Model #: 10528143
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Grade | EP7020 |
| Connection Diameter Machine Side (DCONMS) | 0.363″ |
| Head Length (LH) | 0.63″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 5 Degrees |
| Measurement Type | Inch |
| End Shape | Chamfer |
| Series/List # | iMX_CH3L_INCH |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
