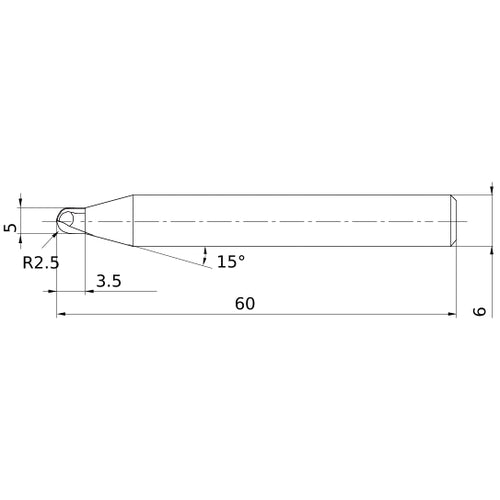

DC2SBR0250
Item #: MB0310540282
Brand: Mitsubishi Materials USA
Model #: 10540282
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5 mm |
| Corner Radius (RE) | 2.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 3.5 mm |
| Length Group | Short |
| Overall Length (OAL) | 60 mm |
| End Shape | Ball Nose |
| Coating | DC |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | DC2SB |
