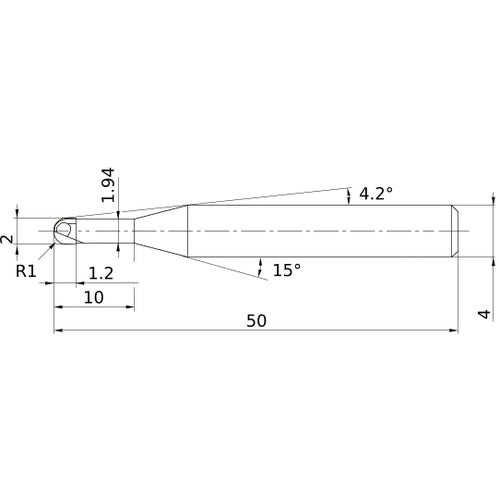

DC2XLBR0100N100
Item #: MB0310540381
Brand: Mitsubishi Materials USA
Model #: 10540381
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2 mm |
| Corner Radius (RE) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 1.94 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 50 mm |
| Length Group | Long - Necked |
| Coating | DC |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Usable Length (LU) | 10 mm |
| Series/List # | DC2XLB |
