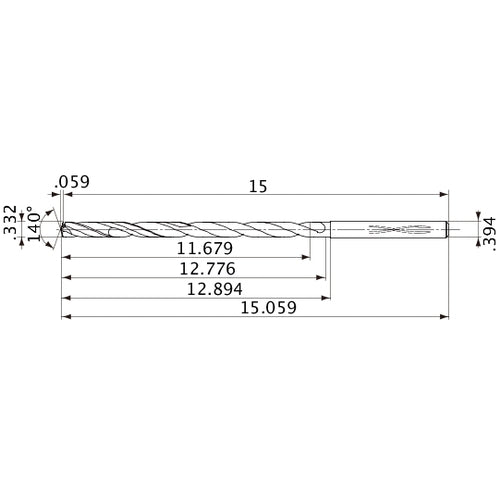

MVS0843X35S100 DP1020 0.332″ Dia. × 0.394″ Shank × 12.776″ Flute Length × 15.059″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB0310546550
Brand: Mitsubishi Materials USA
Model #: 10546550
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.332″ |
| Flute Helix Angle (FHA) | 27 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.332″ |
| Cutting Edge Material | Carbide |
| Length Group | 35xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Series/List # | MVS_INCH |
| Head Length (LH) | 12.894″ |
| Usable Length (LU) | 11.679″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 12.776″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 15.059″ |
| Point Length (PL) | 0.059″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 15″ |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
